  • Ives Roller Bumpers Roller Bumpers for two doors open against each other - RB470

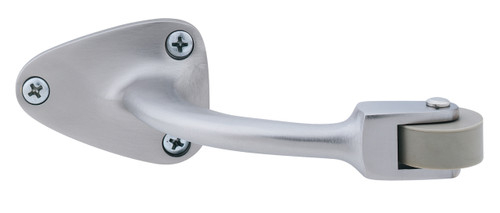

Ives Roller Bumpers Roller Bumpers for two doors open against each other - RB470

$31.26
SKU:
RB470
Quantity:

Product Description

Options available for floor stops, wall stops, and more

For more than 120 years Ives has produced a full line of top quality commercial door hardware that delivers the utmost application flexibility and superior value. Ives provides a variety of accessories including butt hinges, continuous hinges, flush bolts, coordinators, pulls, plates, wall stops, floor stop, exterior hardware and more.

RB470 RB471 RB472 Roller Bumpers

  • • Constructed in heavy-duty cast brass.
  • • RB470 used where two doors open against each other to prevent damage to the doors or hardware .
  • • RB471 and RB472 are ideal for use in situations where doors meet each other at approximate right angles (back to back) .
  • • Replaceable rubber roller available.

Dimensions

RB470 Base Size: 1-11/16” x 2-1/4” RB470 Arm Offset: 2-3/4” RB470 Length: 5”
RB471 Base Diameter: 2” RB471 Length: 4-1/2”
RB472 Base Diameter: 2” RB472 Length: 6”

Floor and Wall Stops

The purpose of stops are to stop the door from opening too far and slamming into the wall. Stops can also be used to help keep the door open. These accessories are typically found on doors without an overhead stop and are used as a low cost substitute. There are a variety of stops for all different types of applications. Ives offers floor stops, wall bumpers, hinge pin stops, residential door stops, kick down holders and other small stops.

Features and benefits

  • Stops prevent damage to the door, wall and frame but stopping the door from opening too far
  • Brass, bronze or aluminum construction provide strength and a variety of finish options
  • Kick down or semi-automatic holders are designed to hold the door open
  • Specific product series offer concealed tamper-proof mounting
  • Ives is backed by Allegion, a global leader in fire and life safety products

Designs and finishes

Designs

  • Floor Stops – Floor stops are mounted to the floor and stop the door from opening too far and hitting the wall or another door
  • Floor Stops and Holders - Floor stops and holders are mounted to the floor and stop the door from opening too far and hitting the wall or another door but also can hold the door open with a hook that manually is connected to the door
  • Wall Bumpers / Stops – Wall Bumpers and stops are mounted to the wall and stop the door from opening too far and hitting the wall or another door
  • Wall Holders – Wall holders are mounted to the wall and stop the door from opening too far and hitting the wall but also can hold the door open with a hook that manually is connected from the door to the wall holder
  • Kick Down Holder – Kick down holders are mounted to the face of the door and can either be in the up position to let the door swing freely or the down position to hold the door open at different angles
  • Roller Bumpers – Roller Bumpers are typically mounted on a door to prevent two door from slamming into each other. The roller bumper stops the second door from opening and rolls the second door to a completely open or closed position
  • Residential Door Stops – Residential door stops are mounted at the base of the door or wall to stop from opening too far and hitting the wall or another door
  • Hinge Pin Stops – Hinge pin stops are mounted on the pin of the hinge to stop the door from opening too far and hitting the wall or another door
  • Silencers – Installed on metal frames featuring pneumatic design that, once installed, forms an air pocket to absorb shock and reduce noise of door closing

Finishes:

  • 605, US3 – Bright Brass, Brass
  • 606, US4 – Satin Brass, Brass
  • 609, US5 – Satin Brass, Blackened, Satin Relieved, Clear Coat, Brass
  • 612, US10 – Satin Bronze, Bronze
  • 613, US10B – Oil Rubbed Dark Bronze, Bronze
  • 619, US15 – Satin Nickel Plated, Brass, Bronze
  • 625, US26 – Bright Chrome, Brass
  • 626, US26D – Satin Chrome, Brass
Kick Down Holders
FS452 Kick Down Holder
  • Units provide simple hold and release, activated with a touch of the foot
  • Cast brass or aluminum construction
  • Stainless steel spring
  • Replaceable non-marring rubber shoes have corrugated bottoms to provide secure grip
  • Shoes are easily replaced when worn. Shoe held on with screw
  • Packed with sheet metal screws
  • FS452-4 has a door-to-floor clearance of 2" or less
  • FS452-5 has a door-to-floor clearance up to 3"

FS455 Kick Down Holder

  • Units provide simple hold and release, activated with a touch of the foot
  • Cast brass or aluminum construction
  • Replaceable non-marring rubber shoes have corrugated bottoms to provide secure grip. When worn, shoes are easily replaced. Shoe held on with screws.
  • Door-to-floor clearances of 2" or less

FS544 and FS555 Kick Down Holder

  • Units provide an economical method to hold open doors
  • Cast of durable iron
  • Non-marring rubber shoes have corrugated bottoms to provide secure grip. Rubber shoe is securely fastened with screw. When worn, shoes are easily replaced.
  • FS544 for door-to-floor clearances of 2" or less
  • FS555 for door-to-floor clearances up to 3"

Plunger Type Door Holders
FS1153 Plunger Type Door Holder

  • Provides a contemporary yet economical method of positive Hold-Open
  • Constructed in sturdy cast aluminum
  • Spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the platform lever
  • Provides a 1 5/8" throw for all types of doors
  • Ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn

FS1154 Plunger Type Door Holder

  • Constructed from heavy-duty cast brass or bronze
  • Plunger and internal parts are plated steel and provides a 1 1/4" throw for all types of doors
  • Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever
  • Round non-marring rubber shoe is securely fastened with a screw in flanged cup to prevent movement or loss. When worn, shoes are easily replaced.

Roller Bumpers
RB470, RB471, and RB472 Roller Bumpers

  • Constructed in heavy-duty cast brass
  • RB470 used where two doors open against each other to prevent damage to the doors or hardware
  • RB471 and RB472 are ideal for use in situations where doors meet each other at approximate right angles (back to back)
  • Replaceable rubber roller available

Door Silencers
SR64 Door Silencer

  • For use on metal frames featuring pneumatic design that, once installed, forms an air pocket to absorb shock and reduce noise of door closing
  • Tamper-proof once installed on the frame
  • Proper installation also eliminates door rattle and provides constant tension for door latches or locks
  • Packed in bags of 100
  • Grey Available in bulk pack of 2500
  • Each bag has an installation tool included

SR65 Door Silencer

  • For use on wood frames, also feature pneumatic design to cushion shock and absorb noise
  • To prevent removal, a small brad should be driven into stop strip and through stem of silencer, as shown in the detail
  • Packed in bags of 100

SR66 Door Silencer

  • Self Adhesive Rubber Silencers
  • Economical installation requires no drilling of frames
  • Packed two sheets of 50 (100 minimum)
