Hafele Top Hung Track Slido Design 80-M

$430.00
SKU:
940.59.003
Quantity:

Product Description

 Häfele Slido 80-M Sliding Door fittings
Application:
-Allows wall mounted wooden doors to slide across openings as if they were floating, the unique design means all tracks and fixings are hidden. Suitable for residential or commercial applications such as offices, meeting rooms or hotels. Includes soft closing mechanism.
- Please note the bottom rollers need to run on a solid floor, if carpet is present then a running strip must be used (by others)

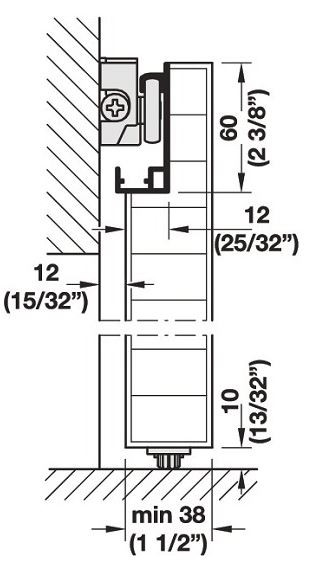

- Top track can be recessed into the door for a wall to door clearance of 12 to 22 mm or face fixed with a clearance of 32 mm for skirting boards
Range:
- For door width 800 - 1800 mm
- Max. door weight 80 kg
- Min. door thickness 30 mm
- Height adjustment ± 2 mm

Slido 80-M includes:
- Rail, 1100/*1800 mm; 1/*1 pc
- Top running gear, wall mounted; 1/*1 pc
- Soft close, Plastic housing: 2/*2 pcs
- Guide channel, Grey plastic: 1/*1 pc
- Guide: 1/*1 pc
- Bottom roller, Grey plastic housing: 1/*1 set
- End caps, 1 pair black , 1 pair silver coloured: 1/*1 set
- Distance plates, 3x 1 mm,3x 2 mm and 3x 3 mm: 1/*1 set
- Distance roller: 2/*2 pcs
