NGP Surface Automatic Door Bottom 36 inch

$56.00
SKU:
222NA
Quantity:

Product Description

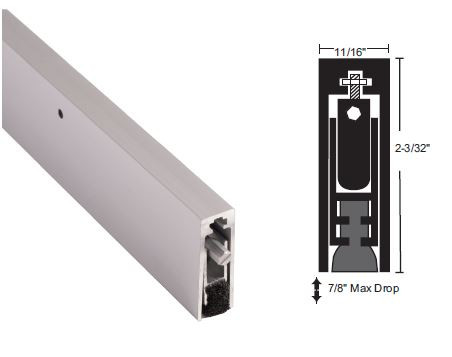

Anodized Aluminum Automatic 36" Door Bottom with Neoprene Seal

  • BHMA certified to ANSI/BHMA A156.22, 1,000,000 cycle test-grade 1
  • BHMA certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
  • Aluminum alloy 6063, T5 temper
  • Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
  • Very good abrasion resistance, tensile strength and memory
  • Flame resistant
  • Moisture resistant
  • Temperature range -20°F to 200°F
  • Good resistance to ozone, sunlight and aging
  • Mounts on push side of door
  • Use with a threshold for maximum sealing capability
  • Nylon brush recommended for carpet applications where no threshold is provided
  • Specify exact net length required to avoid field sizing
  • 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
  • Minimum length 11", maximum length 60"
  • End caps furnished standard
  • 7/8" max drop
  • Neoprene is black
  • Anodized aluminum
