Securitron Magnalock M670


Product Description

Securitron Magnalock M670 Templates

 Securitron Magnalock M670

• Bracket mounting provides the easiest install for out-swing doors
• Innovative templating for an effortlessly accurate alignment between magnet and armature plate
• Sleek, low profile and refined lines for improved aesthetics
• LED shows red or green for lock status indication
• Autosensing dual voltage with microprocessor technology
• Wire chamber anti-tamper switch
• Efficient, low power usage

Magnalock: MAG-M670
• Holding Force: 1100lbs (499 kg)

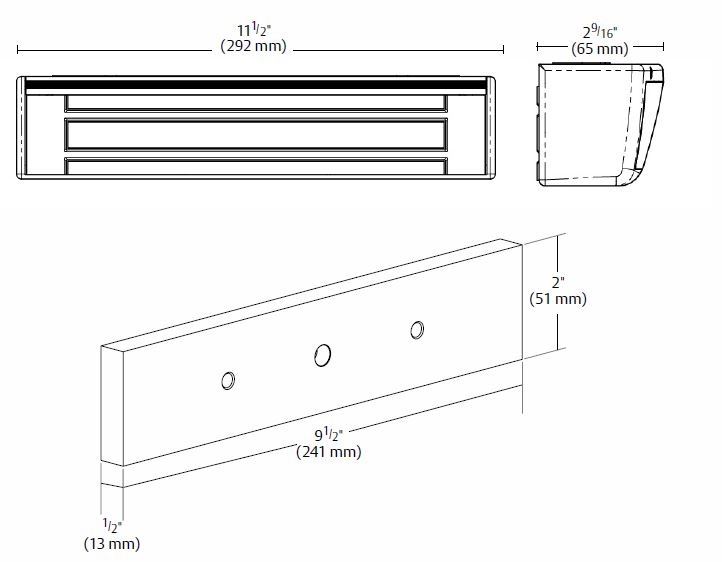

Magnalock: 111/2"L x 29/16"D x 21/2"H

Strike: 91/2"L x 1/2"D x 2"H
• Electrical:
575mA (± 10%) at 12VDC
275mA (± 10%) at 24VDC
• Operating Temperature: +32 to +110F (0 to +43C)
Indoor use only

Clear Anodized Aluminum finish
